Lean Management Systems



Insert Sheet

Insert a useful template sheet into ANY Excel document

For all 150+ of your Systems2win templates,

Video: How to use
special features to
Insert Sheet, and Link Data

you can open a fresh new (stand-alone) document, by selecting
Excel Ribbon bar > Systems2win tab > Systems2win Templates

Excel Ribbon bar > Systems2win tab > Systems2win Templates

In addition to that option to open an independent workbook,

about 30 of your templates also give you the option to
Insert a Sheet into any other Excel workbook,

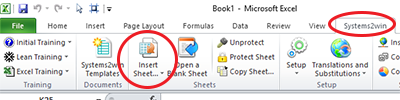

by selecting Excel Ribbon bar > Systems2win tab > Insert Sheet

Excel Ribbon bar > Systems2win tab > Insert Sheet

Examples...

If you are the team leader, or a supervisor, or manager...

Team Charter

perhaps you might want to insert a Team Charter into your current workbook,

or an Approvals sheet, or a Value Stream Plan, or an Action List, or a To Do List, or a Bowling Chart, or a Gantt Summary Milestone Chart, or a sheet to collect Issues and Ideas, or a Change Management sheet, or a Results Audit.

If you are on a team responsible to produce measurable improvements...

Block Diagram

perhaps you might want to insert a Block Diagram into your current workbook,

or a Check Sheet, or a Flow Chart, or a Gemba Interview, or a Layout Diagram (Spaghetti Diagram), or Cycle Time Observations, or Is Is Not Problem Analysis, or Muda Waste Observation, or a Pareto Chart, or a Process Analysis sheet, or a Root Cause Analysis Fishbone Diagram, or a Run Chart, or a Histogram, or a Scatter Plot, or a SIPOC Diagram, or a Stick Figure Illustrator, or a Takt Time Calculator, or a Yamazumi Chart.

If you need to train your people to do things a new way...

Training Matrix

perhaps you might want to insert a Training Matrix into your current workbook,

or a TWI Job Breakdown, or a Checklist, or Operational Definitions,
or a Revision Log.

You can always insert any of these sheets into any other Excel workbook,

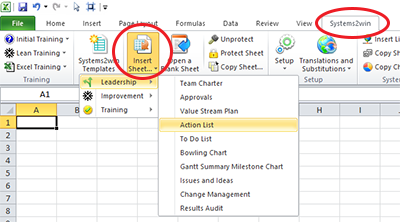

Insert Sheet menu - expanded

thereby greatly increasing the efficiency, effectiveness, and consistency
of every continuous improvement effort championed by every leader in your organization.


If you are still using the Trial version...

Systems2win menu > Templates

then 'Insert Sheet' only works with the shareware templates

(that have no trial expiration)

The 60-day trial templates are opened as a stand-alone workbook, using Excel Ribbon bar > Systems2win tab > Systems2win Templates

And then all of the other templates on the 'Insert Sheet' menu
become available as soon as you purchase your license.


Share your document with anyone

You can share your document with anyone that has the Systems2win add-in installed on their computer.

It's okay to share even if they just have the free Trial / Shareware version installed.

It would be a violation of your License Agreement to use a document created from a Systems2win template
on a computer that does not have the Systems2win Excel add-in installed.

And, of course, you also have the option to share the results of what you created
with anyone (even without the add-in installed) if you prefer to share as a PDF.



Dropdown lists

Dropdown lists for faster data entry and fewer mistakes

Many of these sheets will also come with an extra sheet
that is needed for dropdown lists.

IMPORTANT: Never delete or rename this DV sheet.

If you don't want to see it, it is okay to hide it.

Similarly, never delete or rename the (already hidden) TT sheet.



Translations

Switch languages

Easily switch between
languages

If you are inserting your sheet into a workbook that
was created from a Systems2win template,

then your newly inserted sheet will be translated
just like every other sheet in the workbook.

If you are Inserting your sheet into a workbook that
was not created from a Systems2win template,

then you cannot switch between translations,
so choose your desired language before using the button to 'Insert Sheet'.



Missing phrases

If you are inserting your sheet into a workbook that
was created from an older Systems2win template,

then some phrases might be missing on the newer sheet

(those cells will display the #N/A error)

Solution Option 1: Migrate your data from your old working document
to a workbook created with the new version of the template.

Solution Option 2: Open a copy of the newer template workbook to see what phrases are missing,
and then manually type the missing phrases, overwriting the VLOOKUP formula with your text.



Return to Quick Start Training





Link Data

How to auto-update cells with values from other cells

so that the data instantly changes in both places



See the training for how to Link Data



Link Charts

How your charts can instantly update as your data changes

without needing to regenerate the chart every time that your data changes



See the training for how to Link Data
